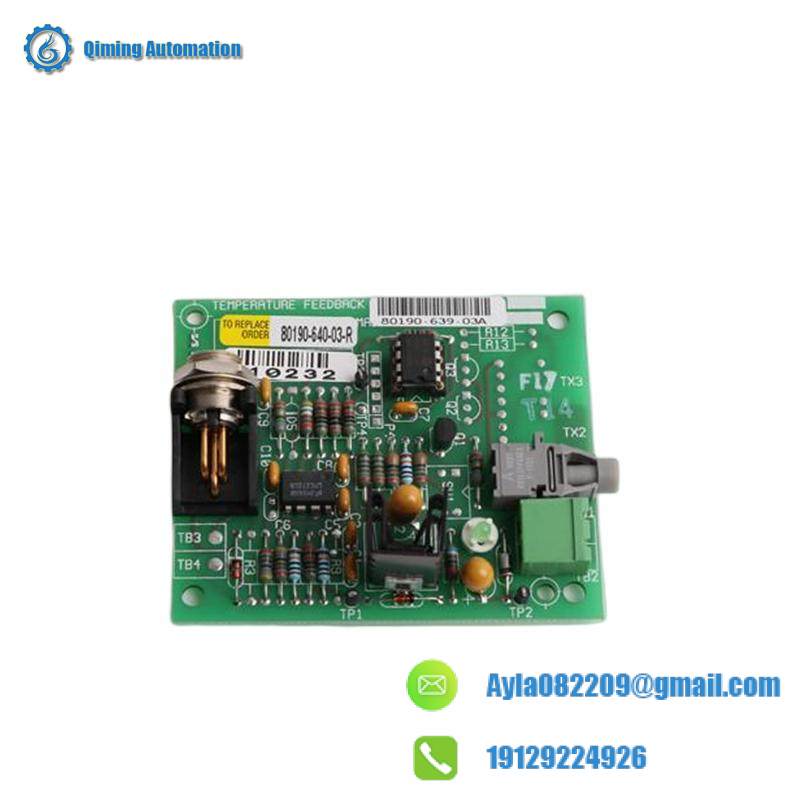

AB Electronics 80190-640-03-R Conditioning Module, Industrial Control Solutions

Type:Conditioning Board

Model:AB 80190-640-03-R

Manufacturer:ABB

Technology:Advanced Signal Processing

Operating Temperature Range:-20°C to +50°C

Power Consumption:12W

Dimensions:240mm x 180mm x 35mm

Weight:0.7kg

Connectors:8 x BNC, 4 x RS-485, 1 x USB

Input Voltage:90V to 264V AC or 120V to 360V DC

Output Voltage:DC 5V

Input Signal Range:±10V

Output Signal Range:0 to 10V

Communication Protocol:MODBUS RTU

Environmental Rating:IP20

Certifications:[“CE”,”UL”,”IEC”]

    The ABB AB 80190-640-03-R Conditioning Board is engineered to meet the stringent requirements of modern industrial automation environments. This robust board is equipped with advanced signal processing capabilities, ensuring high accuracy and reliability in data transmission.

    Featuring an ergonomic design that maximizes space efficiency without compromising functionality, it supports multiple connectivity options including BNC connectors for RF signals, RS-485 for serial communication, and a USB port for easy software updates and diagnostics.

    Operated within a wide temperature range from -20°C to +50°C, this board is suitable for various industrial settings. Its efficient power consumption of just 12W ensures minimal energy use while maintaining optimal performance.

    With support for a broad input voltage range of 90V to 264V AC or 120V to 360V DC, the Conditioning Board offers versatility in powering diverse industrial applications. Its output voltage of DC 5V and a wide input signal range of ±10V, combined with an output range of 0 to 10V, make it ideal for interfacing with a variety of sensors and actuators.

    Equipped with MODBUS RTU communication protocol, the board facilitates seamless integration with existing control systems. Coupled with its environmental rating of IP20, the Conditioning Board is designed for durability and reliability in challenging industrial environments.

    Ensuring safety and compliance, this board meets international standards including CE, UL, and IEC certifications, making it a trusted choice for industrial automation projects worldwide.
