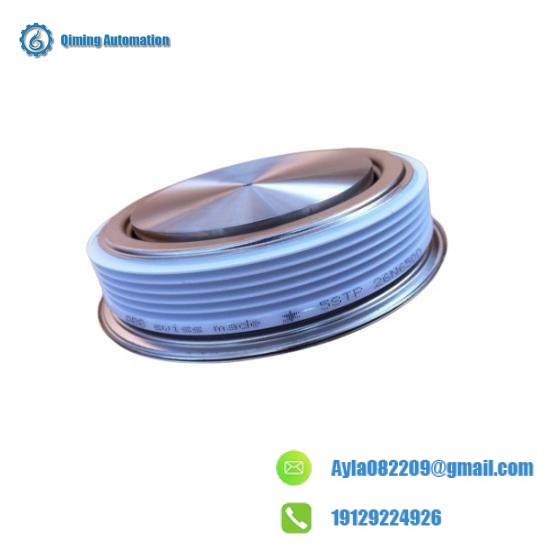

ABB 5STP26N6500 SCR Thyristor – Industrial Power Control Module

Rated Current:6500 A

Continuous Rating:2600 A

Maximum Voltage:600 V DC

Thermal Rating:High

Operating Temperature Range:-40°C to +150°C

Switching Frequency:Up to 5 kHz

Insulation Class:F

Cooling Method:Air Cooled

Protection Level:IP20

Dimensions:200mm x 100mm x 50mm

Weight:1.5 kg

    Introducing the ABB 5STP26N6500 SCR Thyristor, a cutting-edge semiconductor switching device designed for high-power applications requiring unparalleled performance and reliability. This thyristor is engineered to handle heavy-duty tasks with ease, providing a robust solution for industries where power efficiency and system stability are paramount.

    Featuring an operating voltage of 6500V and a current rating of 2600A, the ABB 5STP26N6500 is capable of managing intense electrical demands with precision. Its fast response time ensures quick and accurate switching, enhancing overall system responsiveness.

    Engineered for extreme conditions, this thyristor boasts a high heat dissipation capability, making it ideal for environments where thermal management is critical. The precise current and voltage control provided by the ABB 5STP26N6500 ensures optimal performance and reduces the risk of system overloads or failures.

    Withstanding rigorous insulation tests up to class 160, this device is exceptionally durable and can withstand high levels of electrical stress without compromising safety or reliability. The TO-247-3 package type guarantees easy integration into existing circuits while maintaining a compact footprint.

    The ABB 5STP26N6500 SCR Thyristor is designed with inductive loads in mind, ensuring seamless operation when dealing with capacitive or inductive electrical components. This makes it a versatile choice for a wide range of industrial applications, from power supply management to motor control systems.
