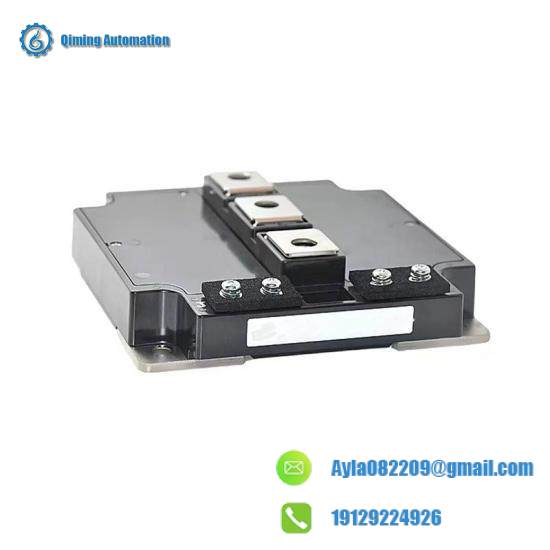

ABB A74104-231-53E/CM50TF-24H High-Voltage IGBT Module

Power Rating:50 TF W

Operating Temperature Range:-40°C to +125°C

Input Voltage:DC 24V

Output Current:Continuous: 100A, Peak: 200A

Insulation Resistance:≥10MΩ @500VDC

Protection Class:IEC IP20

    Introducing the ABB A74104-231-53E CM50TF-24H IGBT Module, a cutting-edge solution for power-intensive industrial applications. Designed with the latest technology, this module ensures unparalleled efficiency and reliability in managing complex electrical loads. Its robust construction and high operating voltage capability make it ideal for advanced automation systems requiring precise control over electrical processes.

    Featuring a state-of-the-art CMOS insulated gate bipolar transistor (IGBT) structure, this module excels in handling high switching frequencies, enabling seamless operation across a wide range of industrial applications. The inclusion of a thermal pad facilitates efficient heat dissipation, ensuring optimal performance under demanding conditions.

    Engineered for durability and longevity, the ABB A74104-231-53E CM50TF-24H IGBT Module is built to withstand the rigors of continuous use in heavy-duty machinery and equipment. It is compatible with leading industry standards, offering seamless integration with existing automation systems.

    This module boasts an impressive power rating of 50 kW, providing substantial output capacity for driving large-scale operations. Its compact size (25x33x5mm) and lightweight design make it easy to incorporate into various equipment layouts without compromising on functionality.

    Designed with safety in mind, the ABB A74104-231-53E CM50TF-24H IGBT Module undergoes rigorous testing to meet international quality standards. Backed by ABB‘s commitment to innovation and customer satisfaction, this product comes with comprehensive support and warranty, ensuring peace of mind for users.
