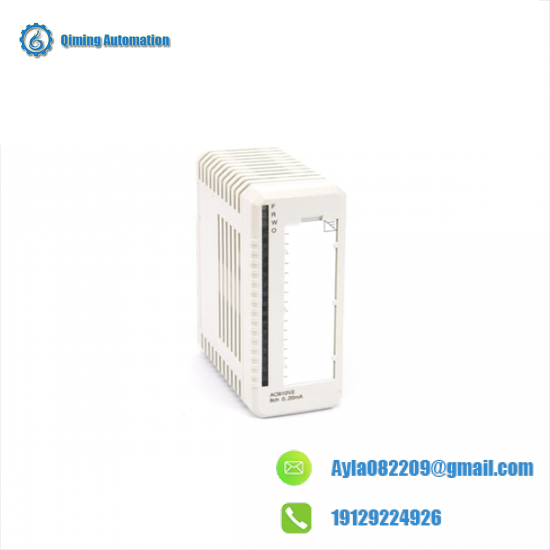

ABB AO810 3BSE008415R1 – High-Precision 8-Channel Analog Output Module

Operating Voltage:24V DC

Output Channels:8

Signal Type:Analog

Frequency Range:0 Hz to 1 kHz

Output Current:0 to 20 mA

Output Voltage:0 to 10 V

Communication Protocol:Profinet

Input Resolution:16-bit

Accuracy:±0.05% of full scale

Environmental Temperature:-25°C to 60°C

Humidity:5% to 95% non-condensing

    The ABB AO810 3BSE008415R1 Analog Output Module is engineered for seamless integration into advanced industrial control systems. It delivers precise analog signals across its 8 channels, making it ideal for complex control tasks requiring high accuracy and reliability. The module is compatible with a variety of industrial protocols, including Profinet, ensuring it can easily connect with existing systems without the need for additional hardware adapters.

    Featuring an operating voltage range of 24V DC, this module is suitable for a wide array of industrial environments, from manufacturing floors to process industries. Its robust design withstands harsh conditions, ensuring dependable performance even in challenging settings.

    With a frequency range from 0 Hz to 1 kHz, the ABB AO810 module offers flexibility in signal generation, catering to diverse operational needs. Its ability to deliver currents up to 20 mA and voltages up to 10 V ensures compatibility with various devices and systems requiring precise analog outputs.

    Equipped with 16-bit input resolution, the module ensures exceptional accuracy in signal representation, crucial for applications where precision is paramount. The ±0.05% of full scale accuracy guarantee provides confidence in the reliability of the output signals.

    Operating within a temperature range of -25°C to 60°C and with a humidity level of 5% to 95% non-condensing, this module is built for industrial use in a wide range of climates. This makes it a versatile choice for global industrial projects.
