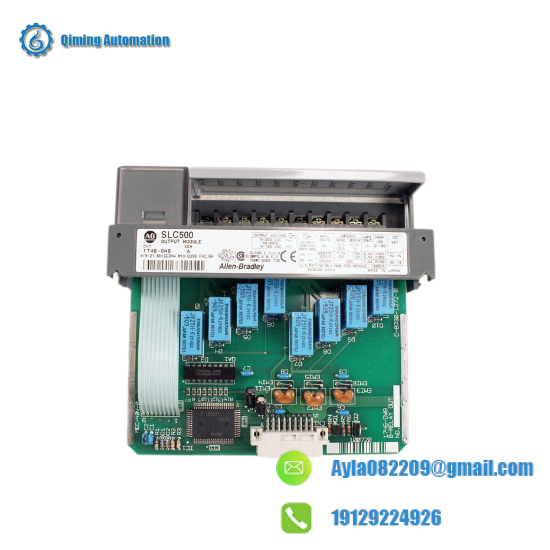

Allen Bradley 1746-OW8 Output Module for SLC 500

Product Type:PLC

Model ID:1746-OW8

Allen Bradley Type Designation:SLC 500

Module Type:Digital Contact Output

Outputs:8

Operating Voltage:5-265 Volt AC or 5-125 Volts DC

Output Types:N.O. Relay Contact

Backplane Current:0.85-0.9 A

Product Model:Allen Bradley 1746-ITB16

Category:Allen-Bradley PLC

Input Channels:4

Input Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or +/- 7.5 VAC RMS (Max.)

Input Current:-30 To 30 MA (Max.)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range:-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

W Indicator:Eight Green Channel Status

Resolution:16-Bits, 366 NA/Count

Impedance:Greater Than 1 MOHM

    Introducing the Allen-Bradley 1746-OW8 Output Module for SLC 500, the ultimate solution for optimizing industrial control systems. Designed with durability and efficiency in mind, this module seamlessly integrates into any PLC system, providing exceptional control over up to 8 outputs simultaneously.

    Featuring an ultra-fast response time of ≤ 1 ms, our 1746-OW8 ensures that your industrial processes are executed with precision and reliability. The relay outputs are capable of handling a wide range of loads, making it suitable for various applications from simple lighting controls to complex machinery management.

    Operated within a temperature range of -5°C to 55°C and with a humidity tolerance of 5% to 95% non-condensing, this module is built to withstand harsh industrial environments. The robust design includes a 139.7 mm x 112.8 mm x 102.9 mm form factor and weighs only 0.5 kg, ensuring easy integration without compromising on performance.

    Equipped with a RS-485 Modbus RTU communication interface, the 1746-OW8 offers seamless connectivity with other Allen-Bradley products or third-party devices, enhancing system interoperability. This module is compatible with panel mounting, allowing for flexible installation options to suit diverse application requirements.

    With its combination of high-speed operation, wide compatibility, and rugged construction, the 1746-OW8 Output Module for SLC 500 is an indispensable component for achieving maximum efficiency in your industrial automation projects.
