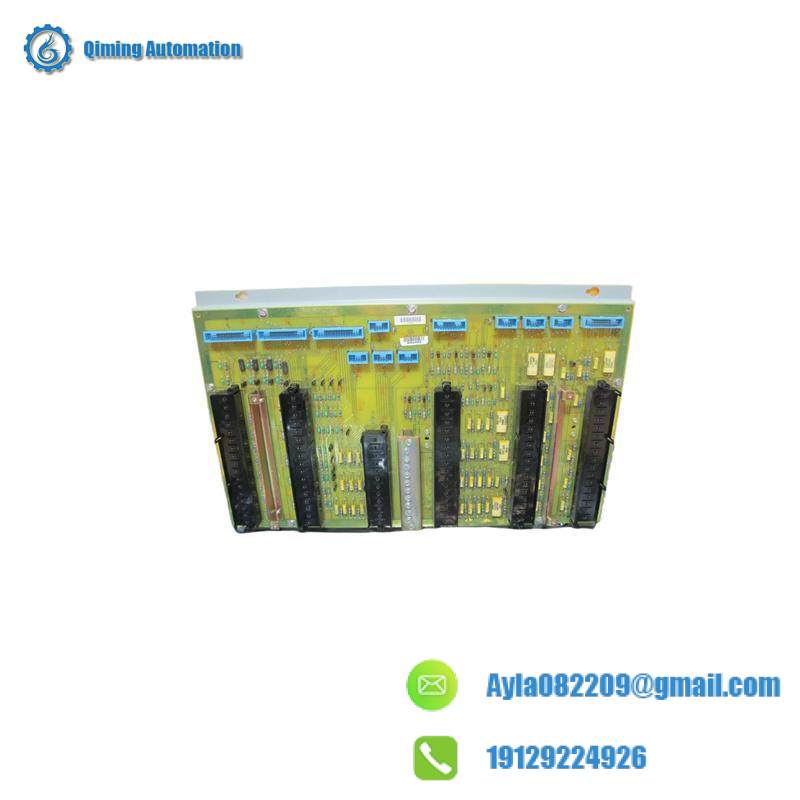

GENERAL ELECTRIC DS3820AIPA ANA 10 Module – Robust Performance for Industrial Control Systems

Module Type:ANA 10

Series:Speedtronic Mark IV

Manufacturer:General Electric

Diode Quantity:Approximately 70 teal diodes

Resistor Quantity:Nearly 100 resistors

Terminal Ports:Feminine terminal port with 2 openings, 13 blue male connection terminals, 4 white plastic male terminal ports

Screws:Several around the perimeter

    The DS3820AIPA is meticulously engineered to provide reliable performance in demanding industrial settings. Its design incorporates approximately seventy teal diodes, which are crucial for directing electrical current through circuits efficiently. Additionally, nearly one hundred resistors, marked with colored rings, adjust the flow of electricity to prevent damage. The module features a single feminine terminal port and thirteen masculine connection terminals, providing versatile connectivity options. Four white plastic male terminal ports add further flexibility. Each male terminal port houses between two to four gold-colored metal pins, enhancing the module’s adaptability to various applications. With its robust construction and precise functionality, the DS3820AIPA ensures seamless integration into GE‘s Speedtronic Mark IV turbine control systems, optimizing operational efficiency and reliability.
